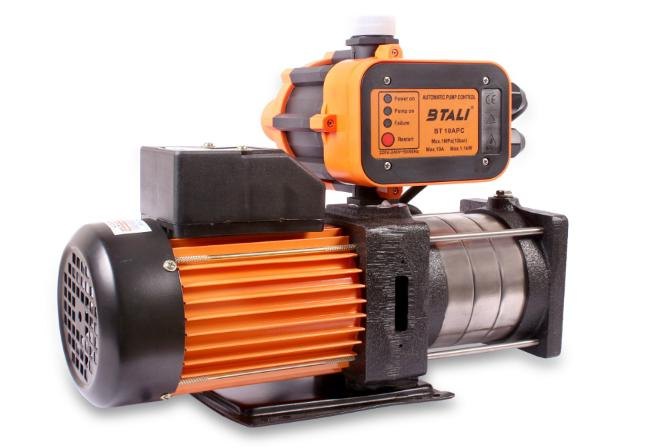

BT 100 HMPP – Btali Horizontal Multi-Stage Pressure Pump
Regular price
Rs. 15,999.00
Sale price
Rs. 15,999.00
Regular price
Tax included.
The BT 100 HMPP is a high-performance high-mounted peripheral pump designed for domestic, commercial, and agricultural water transfer applications.
Powered by a 1 HP (≈0.75 kW) 100% copper winding motor, it delivers strong suction, reliable pressure, and smooth operation even in continuous use.
With its compact high-mounted design, brass impeller, and anti-corrosive aluminum body, the BT 100 HMPP offers durability, energy efficiency, and maintenance-free operation — ideal for overhead tank filling, garden irrigation, and pressure boosting systems.
Product Details
| Specification | Value |
|---|---|
| Model | BT 100 HMPP |
| Type | Horizontal Multi-Stage Pressure Pump |
| Power Rating | 1 HP |
| Voltage | 220–240 V / 50 Hz |
| Phase | Single Phase |
| Motor Type | 100% Copper Winding, TEFC Motor |
| Stages | Multi-Stage (Stainless Steel Impellers) |
| Head Range | 40 – 55 meters |
| Discharge Flow Rate | 60 – 80 L/min |
| Suction Lift | Up to 8 meters |
| Pump Body Material | Stainless Steel (Grade 304) |
| Shaft Material | Stainless Steel |
| Cooling Type | Air-Cooled |
| Applications | Domestic water boosting, RO & filtration systems, industrial water circulation, hydro-pneumatic systems, hotels, hospitals, and apartments |
| Approx. Weight | 10 – 12 kg |
| Key Features | Multi-stage impellers for higher pressure, 100% copper winding for efficiency and longevity, stainless-steel body for corrosion resistance, energy-efficient operation, low noise and vibration, thermal overload protection, compact horizontal design, suitable for continuous use |
