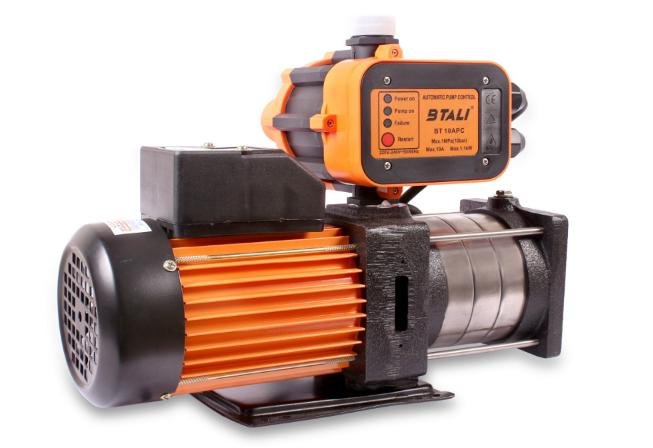

BT 150 HMPP – Btali Horizontal Multi-Stage Pressure Pump
Regular price
Rs. 14,999.00
Sale price
Rs. 14,999.00
Regular price
Tax included.
The BT 150 HMPP is a high-performance Horizontal Multi-Stage Pressure Pump engineered to deliver consistent high-pressure water output for residential, commercial, and industrial applications.
Equipped with a 1.5 HP (≈1.1 kW) 100% copper winding motor, it ensures strong water flow and high efficiency across multiple stainless-steel impeller stages.
With its robust stainless-steel construction, low-noise operation, and thermal overload protection, the BT 150 HMPP is ideal for hydro-pneumatic systems, pressure boosting, RO plants, and continuous-duty water circulation setups.
Product Details
| Specification | Value |
|---|---|
| Model | BT 150 HMPP |
| Type | Horizontal Multi-Stage Pressure Pump |
| Power Rating | 1.5 HP |
| Voltage | 220–240 V / 50 Hz |
| Phase | Single Phase / Three Phase (as per model) |
| Motor Type | 100% Copper Winding, TEFC Motor |
| Stages | Multi-Stage (Stainless Steel Impellers) |
| Head Range | 50 – 65 meters |
| Discharge Flow Rate | 70 – 90 L/min |
| Suction Lift | Up to 8 meters |
| Pump Body Material | Stainless Steel (Grade 304) |
| Shaft Material | Stainless Steel |
| Cooling Type | Air-Cooled |
| Applications | Water supply for high-rise buildings, RO systems, hydro-pneumatic systems, industrial plants, commercial complexes, hospitals, and hotels |
| Approx. Weight | 12 – 14 kg |
| Key Features | Multi-stage impellers for high pressure, 100% copper winding motor for durability, stainless-steel body and shaft for corrosion resistance, energy-efficient design, smooth and silent operation, thermal overload protection, compact horizontal form factor, ideal for continuous pressure boosting systems |
