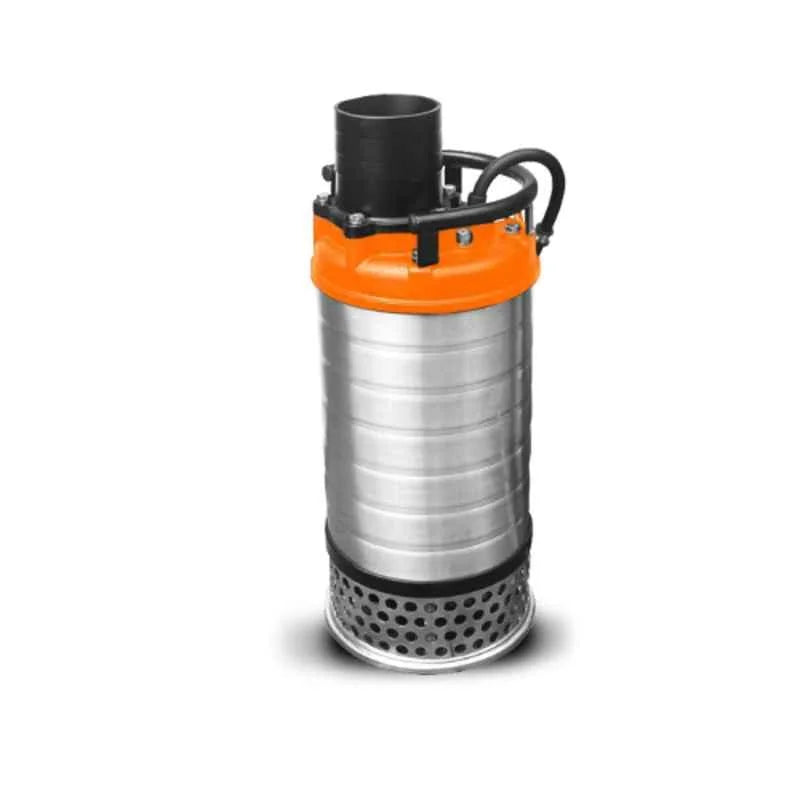

BT 67.5 TSSP – Btali Thermal Stainless Steel Borewell Submersible Pump
Regular price
Rs. 133,999.00
Sale price
Rs. 133,999.00
Regular price
Tax included.
The BT 67.5 TSSP is a high-performance Thermal Stainless Steel Borewell Submersible Pump built for deep water lifting and continuous heavy-duty applications in agriculture, industrial, and commercial water systems.
Equipped with a 7.5 HP (≈5.6 kW) 100% copper winding motor, it delivers exceptional water discharge and efficiency under high head conditions.
With its TSSP (Thermal Stainless Steel Pump) design, the pump provides enhanced motor protection, superior heat dissipation, and complete resistance against corrosion — ensuring long-lasting performance even in challenging environments.
Product Details
| Specification | Value |
|---|---|
| Model | BT 67.5 TSSP |
| Type | Thermal Stainless Steel Borewell Submersible Pump |
| Power Rating | 7.5 HP |
| Voltage | 415 V / 50 Hz |
| Phase | Three Phase |
| Motor Type | 100% Copper Winding, Water-Cooled Motor with Thermal Protection |
| Pump Construction | Full Stainless Steel (TSSP Design) |
| Suction Type | Bottom Suction |
| Pump Head Range | 140 – 170 meters |
| Discharge Flow Rate | 220 – 280 L/min |
| Pipe Size | 2 inch (50 mm) |
| Body Material | Stainless Steel (Grade 304 / 316) |
| Cooling Type | Water-Cooled (Thermally Protected) |
| Applications | Agricultural irrigation, deep borewells, industrial units, commercial complexes, municipal water supply, rural water systems |
| Approx. Weight | 120 – 122 kg |
| Key Features | Thermal overload protection for safe operation, 100% copper winding for efficiency and longevity, corrosion-proof stainless-steel body, high discharge and head capacity, water-cooled for continuous use, low vibration and noise, energy-efficient, ideal for deep and high-pressure water systems |
