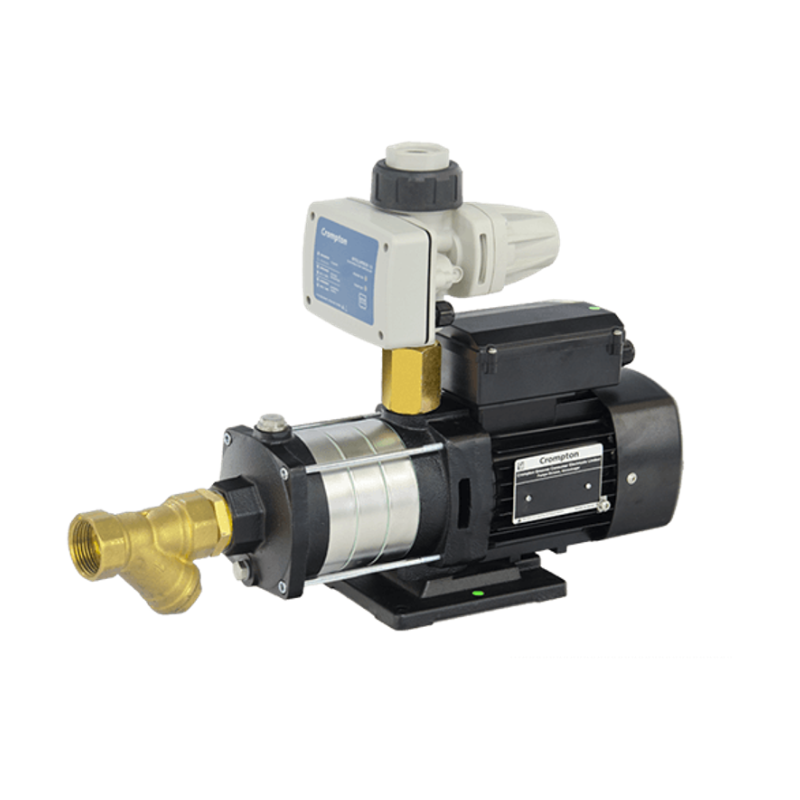

Crompton 0.5 HP 24 ltr IPSWWJ (2-3 B)
Regular price
Rs. 14,800.00
Sale price
Rs. 14,800.00
Regular price
The Crompton 0.5 HP Booster Pump with 24 L Tank (Model: CFMSMB3D0.50-V24) is a robust and efficient water pressure solution designed for domestic use across 2–3 bathrooms. Featuring a 0.37 kW (0.5 HP) single-phase motor, it delivers water efficiently with a head range of 4 to 27 meters and a discharge capacity between 900 to 4,200 L/h (i.e., ~15–70 LPM). Equipped with high-grade Noryl impeller, stainless steel and cast iron construction, and an aluminium extruded motor body, the pump ensures durability and long-term performance. Its automatic operation via float switch and low-noise (<60 dB) design make it ideal for homes needing reliable water boosting.
Specifications
| Feature | Details |
|---|---|
| Model Number | CFMSMB3D0.50-V24 |
| Power Rating | 0.5 HP (0.37 kW) single-phase |
| Tank Capacity | 24 litres (integrated pressure tank) |
| Head Range | 4–27 m |
| Discharge Rate | 70–15 LPM (4200–900 L/h) |
| Rated Voltage | 220 V, single phase, 50 Hz |
| Impeller Material | Noryl (durable thermoplastic) |
| Construction Materials | Diffuser: Noryl, Delivery casing: Cast Iron, Body: Aluminium motor housing |
| Accessories Included | Float switch (dry run protection), Y-strainer, 5-way connector, NRV, Pressure switch |
| Noise Level | < 60 dB (quiet operation) |
| Recommended Bathrooms | 2 bathrooms |
| Weight (Approx.) | ~25 kg |
