Kirloskar 1 HP 24 ltr (5-6 B)

Name: Kirloskar 1 HP 24 ltr (5-6 B)
Brand: Tools and Machines
Price: 26600.0 INR
Availability: InStock

Rs. 26,600.00

Tax included.

Quantity

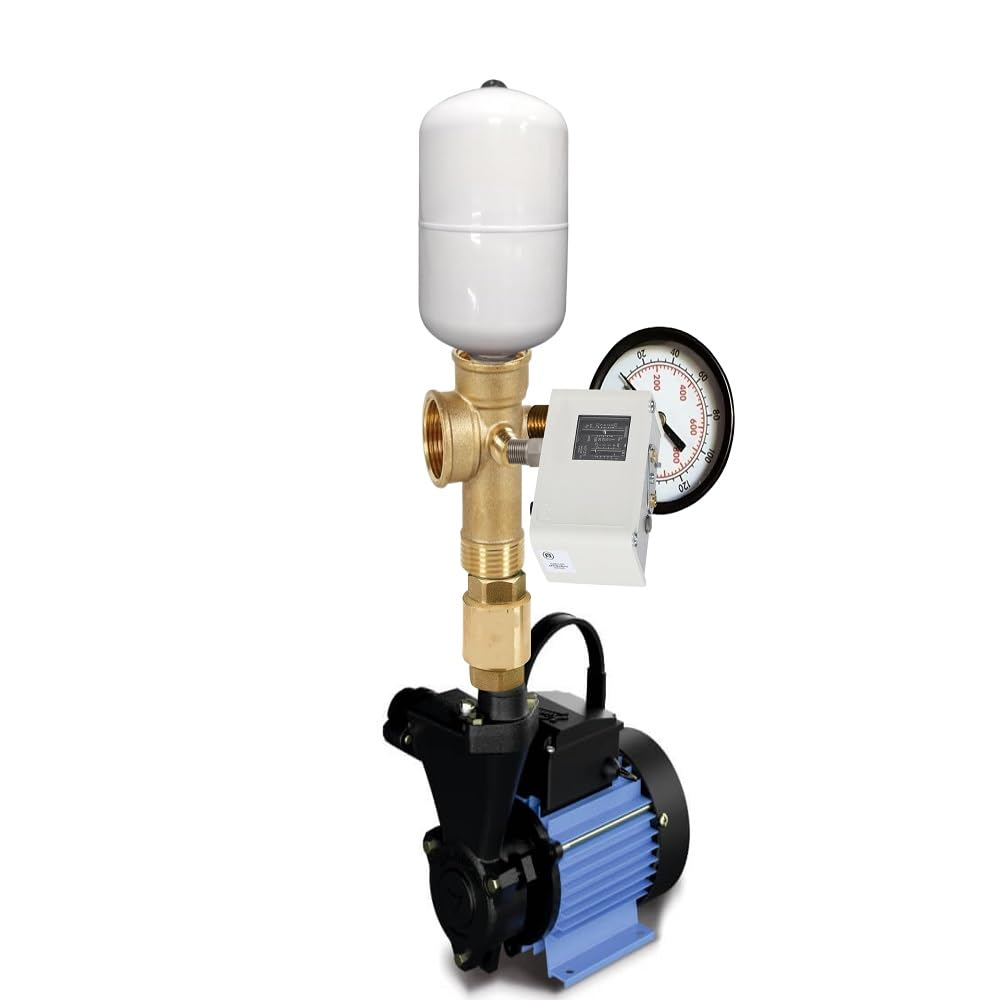

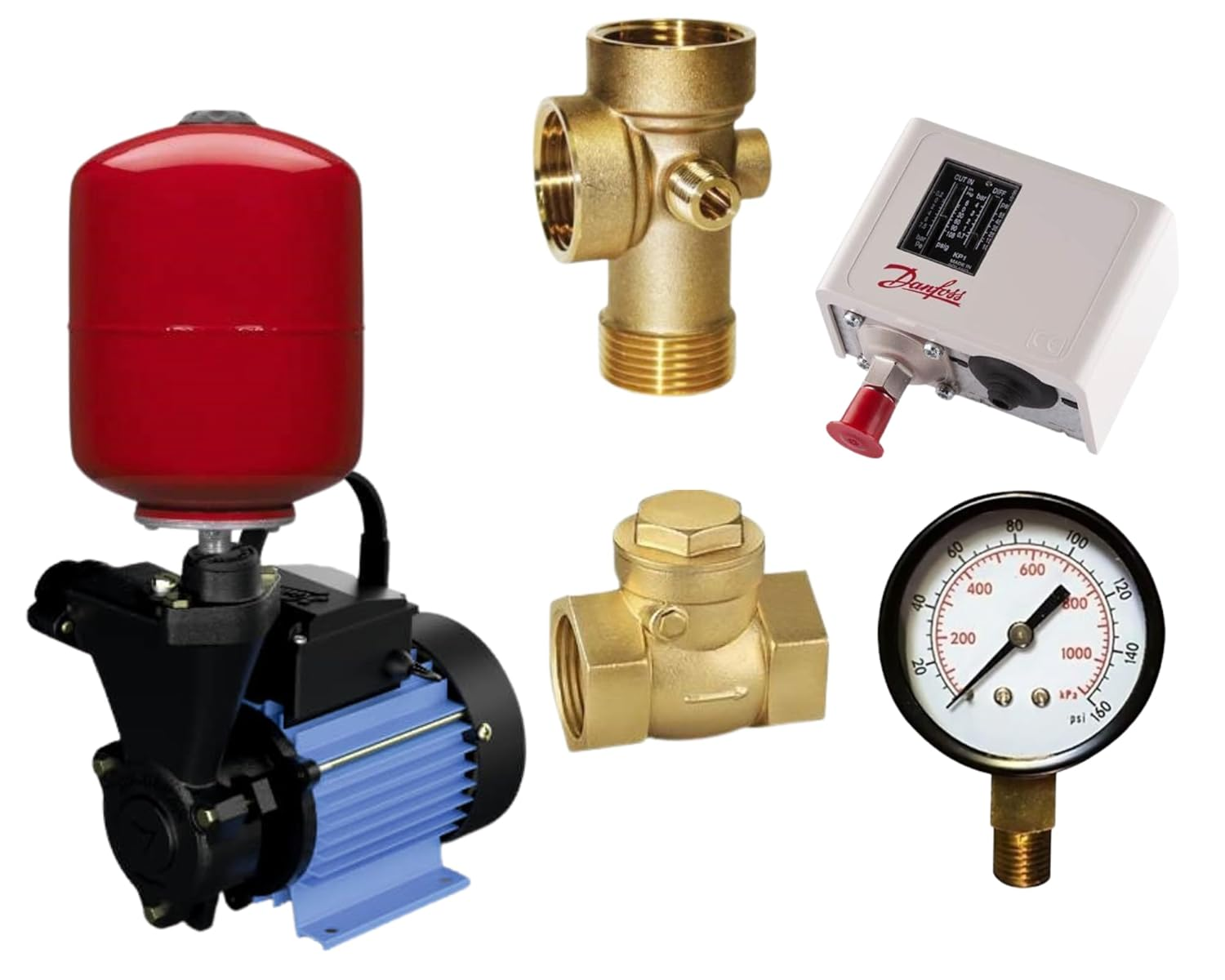

The Kirloskar 1 HP Pressure Booster Pump (CPBS-73624H/V) with integrated 24-litre diaphragm pressure tank offers smooth and reliable domestic water boosting. Equipped with a 1 HP (0.75 kW) single-phase motor, this pump delivers a head range of 6–41 meters and a discharge rate of 20–140 LPM, making it ideal for multi-outlet water usage such as showers, washing machines, and geysers. Built with SS impellers, a thermal overload protector, and a durable diaphragm tank, it ensures safety, long life, and efficient performance.

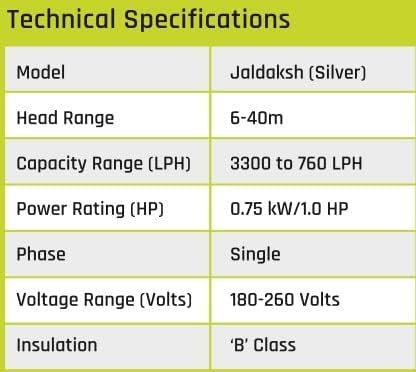

Specifications

Feature	Details
Model No.	CPBS-73624H / CPBS-73624V
Power Input	1 HP / 0.75 kW
Voltage / Frequency	220 V–240 V, 50 Hz single-phase
Head Range	6–40 m
Discharge Rate	20–140 LPM
Pressure Range	2.2–3.6 kg/cm²
Tank Capacity	24 litres (diaphragm type)
No. of Stages	4
Pipe Size (Suction/Delivery)	25 × 25 mm
Construction	SS impellers, cast-iron casing, aluminium motor body, copper winding, IP44
